Service Business Job Card System Guide

A service job card should be the operational record of work requested, assigned, performed, verified, billed, and closed. It connects customer communication with technician activity, materials, approvals, documents, payment, and warranty. A generic task list is not enough when the business needs evidence of what happened and who authorised it.

The system should mirror the real workflow of repair centres, maintenance teams, installers, field-service businesses, workshops, agencies, and support operations without forcing all of them into identical states.

Quick answer

A practical job card system needs:

• customer, site, asset, and contact identity;
• complaint/request and intake evidence;
• priority, appointment, and service commitment;
• assignment by team, technician, or queue;
• controlled job states and timestamps;
• diagnosis, work notes, materials, labour, and attachments;
• quotation or additional-work approval;
• customer updates and proof of completion;
• invoice/payment linkage;
• warranty, callback, and reopen history;
• permissions, audit, and operating reports.

Start with one service type and its exception paths before adding every department.

Define the job-card boundary

Decide what creates a job:

• customer call or form;
• sales order or maintenance contract;
• scheduled preventive visit;
• warranty complaint;
• internal inspection;
• installation request;
• support escalation.

One customer request can create several visits, but those visits may still belong to one job. Separate job identity from appointment and technician task identity so rescheduling does not duplicate the commercial record.

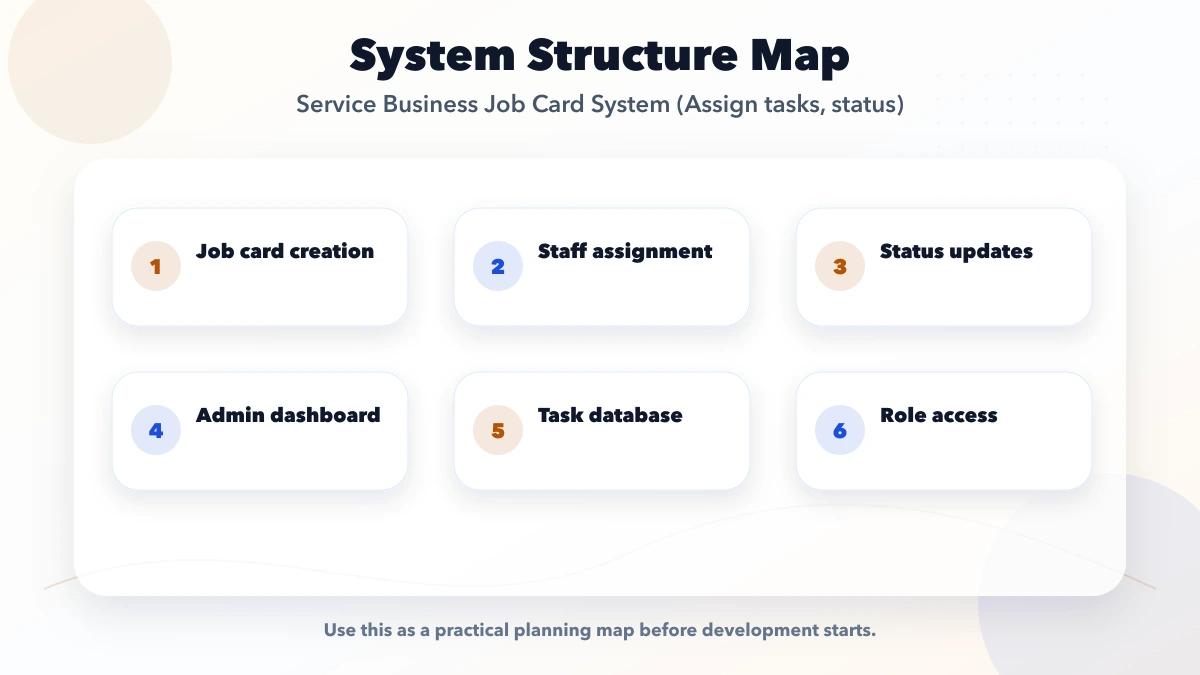

Core data model

Use stable identifiers. Phone number, customer name, and serial-number text alone are not safe relational keys.

Intake workflow

The intake form should capture enough detail to route work without burdening the customer. Fields may include:

• customer and site;
• asset/product and serial number;
• complaint in the customer's words;
• preferred time and access constraints;
• safety or urgency flags;
• contract/warranty reference;
• attachments with permission;
• contact channel and consent;
• source and intake agent.

Preserve the original complaint even after diagnosis changes. It helps compare requested and delivered outcomes.

Priority and service commitments

Priority should follow impact, contractual commitment, safety, service availability, and workaround, not the loudest message. Define examples for urgent, high, normal, and planned work.

For maintenance contracts, store the applicable response/visit commitment with the job snapshot. Do not recalculate old jobs from a newly edited contract. Pauses need reasons such as awaiting customer access, part, approval, or third-party action.

Job states

A useful state model could include:

1. New
2. Triaged
3. Scheduled
4. Assigned
5. En route
6. In progress
7. Awaiting approval
8. Awaiting part/customer
9. Work completed
10. Customer verification
11. Ready for billing
12. Closed
13. Cancelled or Reopened

Each transition needs an authorised role, required information, timestamp, and effect on notifications, stock, billing, and reports. Avoid free-text status names created by individual staff.

Assignment and scheduling

Assignment may depend on skill, territory, shift, workload, asset certification, customer preference, and part availability. The dispatcher should see conflicts and travel context without exposing unrelated customer data.

Support:

• primary and backup assignee;
• team queue before named assignment;
• appointment window and timezone;
• reschedule reason/history;
• planned duration;
• route/area where genuinely needed;
• leave and capacity;
• escalation for unaccepted tasks.

Do not silently overwrite the previous schedule because delay analysis needs history.

Technician mobile view

The technician usually needs a focused mobile interface, not the full admin dashboard. Show assigned jobs, route/site information, safe customer contact, asset history, approved scope, required checklist, parts, notes, and completion actions.

For poor connectivity, define which records are available offline, how edits queue, how conflicts resolve, and how sensitive data is protected on the device. An offline badge without tested sync rules is dangerous.

Diagnosis and estimate approval

Diagnosis should record observations, tests, probable cause, recommended work, parts, labour, and safety notes. If the scope changes, create a versioned estimate rather than editing the accepted amount.

Approval workflow:

• draft estimate;
• internal review if limits require it;
• customer delivery through an approved channel;
• accepted, rejected, or expired decision;
• approver identity and time;
• approved items and maximum amount;
• change request for additional work.

Do not begin chargeable extra work based on an undocumented phone assumption.

Parts and materials

Track parts reserved, issued, consumed, returned, replaced, damaged, or customer-supplied. Link movements to warehouse/van/location and user.

Important controls:

• availability check before scheduling where relevant;
• serial/batch tracking for controlled items;
• old-part return policy;
• substitute approval;
• quantity and cost permissions;
• stock posting event;
• reconciliation between job, issue, return, and invoice.

The job card should not reduce stock twice when a visit is resubmitted.

Work evidence and customer verification

Evidence can include structured checklist results, notes, before/after photos, measurements, replaced-part details, and customer acknowledgement. Collect only what is necessary and obtain permission for photos or signatures.

A signature confirms a defined statement, not automatically perfect workmanship or waiver of all rights. Display the statement, language, timestamp, signer context, and document version.

Completion should require mandatory safety and quality checks for the service type. Supervisors may need review before customer closure.

Customer updates

Useful events include job received, appointment confirmed, technician assigned, delay, estimate sent, approval received, work completed, invoice available, and callback opened.

Every notification needs:

• eligible state transition;
• approved recipient;
• channel consent;
• template and language;
• deduplication key;
• provider result;
• retry and stop rule;
• support fallback.

Do not expose technician personal numbers or sensitive site details unnecessarily.

Billing and payment linkage

Keep operational completion separate from financial posting. The job can provide approved labour, parts, taxes, discounts, and reference data to billing, but invoice numbering and accounting rules belong to the billing system.

Show:

• estimate versus final approved items;
• invoice/document link;
• amount due and paid under authorised scope;
• payment method/reference;
• warranty/free-service treatment;
• credit note or refund reference where applicable.

Do not mark a job closed merely because payment succeeded if service verification remains pending.

Warranty, callback, and reopen

A callback may be a continuation, warranty claim, or new unrelated issue. Preserve the original job and link the new record with reason.

Store warranty basis, covered components/work, start/end date, exclusions, previous diagnosis, and approval. Reports should distinguish first-time fix, planned revisit, part pending, customer unavailable, and quality callback.

Roles and permissions

Typical roles include owner, dispatcher, supervisor, technician, storekeeper, billing user, support user, and customer portal user. Permissions need record scope and state conditions.

Examples:

• technicians update only assigned/open jobs;
• storekeepers post material movements but cannot approve discounts;
• billing users read approved completion and create invoices;
• supervisors reopen or override with reason;
• customers see only their authorised jobs and masked staff details;
• exports follow company/branch scope.

Enforce these rules in backend APIs, files, search, and reports.

Reports that help operations

• new, open, overdue, and blocked jobs;
• ageing by state and owner;
• schedule capacity and missed appointments;
• first-time fix and revisit reasons;
• estimate acceptance and delay;
• parts pending and parts usage;
• technician workload and completion quality;
• response/visit commitment performance;
• unbilled completed work;
• callbacks and warranty cost;
• customer/site/asset history;
• data-quality exceptions.

Avoid ranking technicians only by closed count. Job complexity, travel, parts, customer access, and quality matter.

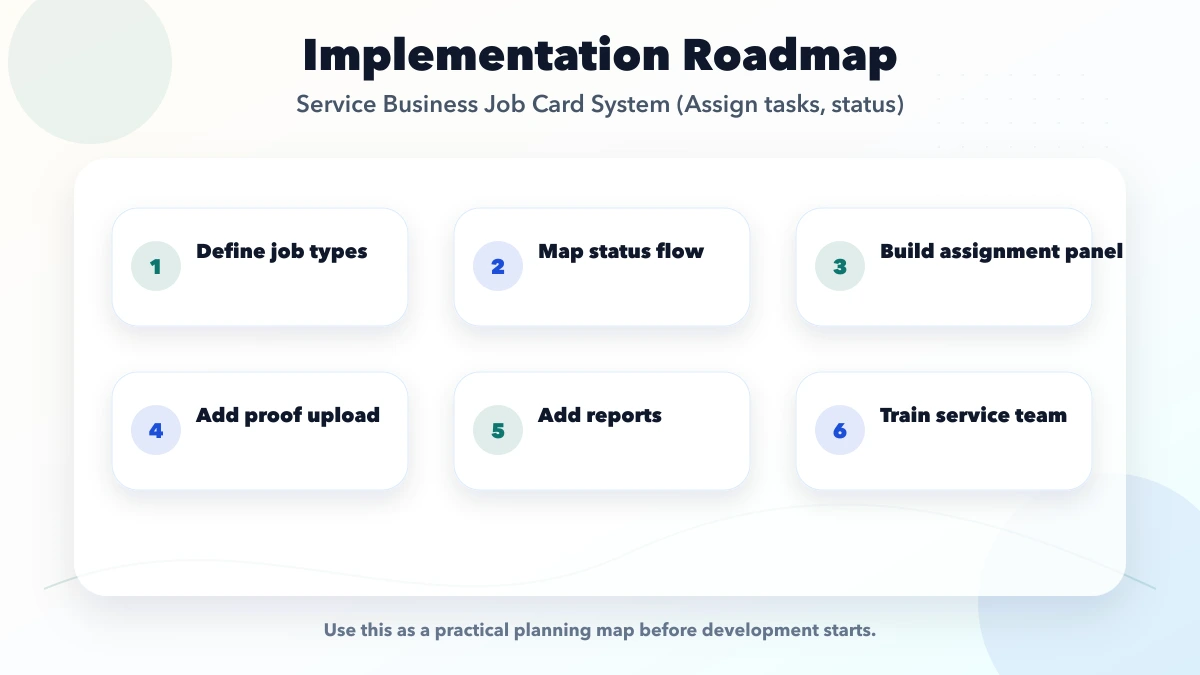

Implementation sequence

1. Observe intake, assignment, service, approval, billing, and callback work.
2. Define customer/site/asset/job/visit identities.
3. Agree states, transitions, roles, and required fields.
4. Build intake, dispatcher queue, and technician mobile flow.
5. Add estimate approval and completion evidence.
6. Connect material movements and billing through controlled events.
7. Configure customer updates with deduplication.
8. Import only cleaned active customers/assets/open jobs.
9. Pilot one service team and reconcile reports.
10. Add contract, route, portal, and advanced analytics later.

Our implementation approach

Our implementation workshop follows one real job from first call through assignment, visit, additional-work approval, material issue, completion, invoice, and callback. We convert its paper, spreadsheet, and message evidence into status and acceptance rules. A second failure-path job tests customer unavailable, part delay, reassignment, duplicate notification, and reopen.

This method clarifies scope; it does not guarantee productivity or service quality. Staff adoption, scheduling discipline, parts availability, and management response remain essential.

Common mistakes

• treating job cards as generic tasks;
• mixing job, visit, estimate, and invoice identities;
• allowing unlimited custom statuses;
• overwriting schedules and approvals;
• starting extra work without recorded consent;
• posting parts or billing twice on retries;
• exposing broad customer data to technicians;
• collecting unnecessary photos or signatures;
• closing before customer/quality verification;
• ranking staff without complexity context;
• importing dirty history before rules are stable.

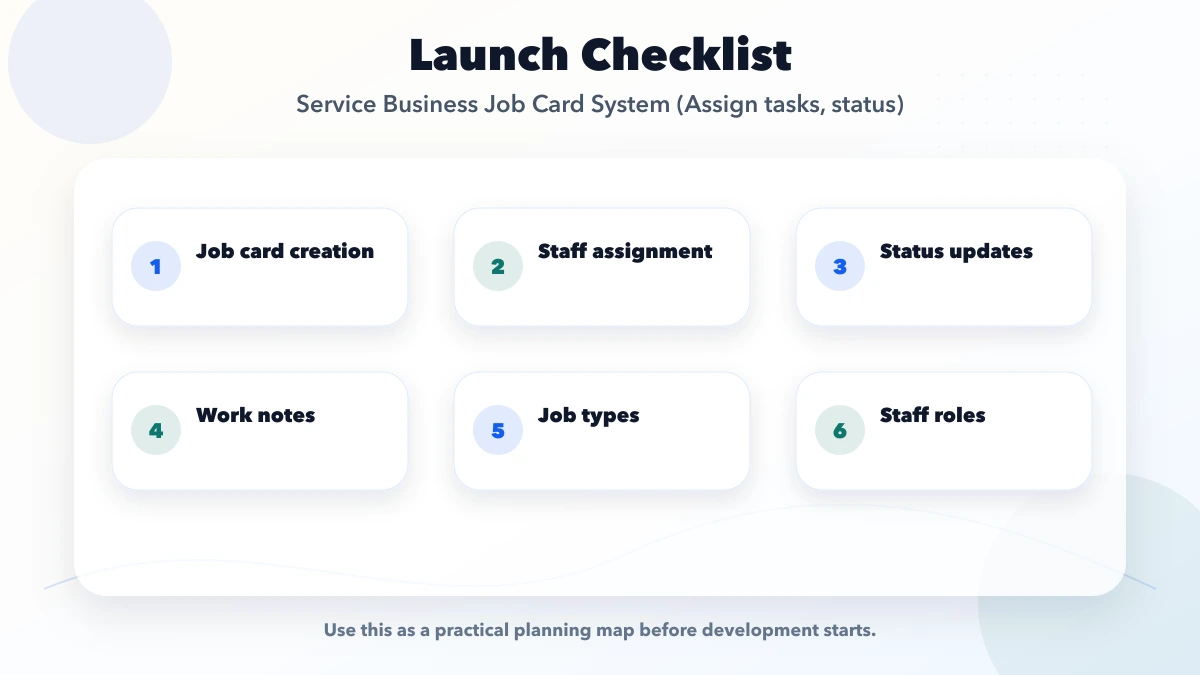

Launch checklist

• [ ] Customer, site, asset, job, visit, and invoice identities are separate.
• [ ] State transitions have roles, required data, and audit history.
• [ ] Assignment uses skill/capacity and keeps reschedule history.
• [ ] Mobile and offline rules are tested where required.
• [ ] Estimates and additional work are versioned and approved.
• [ ] Parts issue/use/return reconciles with the job.
• [ ] Customer notifications deduplicate and stop correctly.
• [ ] Completion evidence and verification are defined.
• [ ] Billing and warranty links preserve source records.
• [ ] Reports, backups, monitoring, support, and training have owners.

FAQs

What is a service job card?

It is the controlled record of a service request, assignment, work, materials, approvals, evidence, billing reference, and closure history.

Is a job card the same as a task?

No. A job may contain several visits or tasks and has customer, commercial, asset, approval, and history context.

Can technicians use it on mobile?

Yes. Design a focused role-based mobile flow. If offline use is required, define encryption, queued actions, conflict handling, and sync evidence.

Can customers approve estimates through WhatsApp?

An approved communication flow can notify and link to secure acceptance. Preserve estimate version, approver identity, decision, timestamp, and provider history.

Should billing be inside the job system?

It can be integrated, but keep operational completion and financial posting rules explicit. Reuse an existing billing source when appropriate.

How much does a custom job-card system cost?

Cost depends on service types, roles, scheduling, mobile/offline, parts, approvals, notifications, billing, migration, reports, and integrations. Scope one representative workflow first.

Related implementation guides

• Compare a specialised workflow in the repair centre management system guide.
• Plan customer issues and escalation with the support ticket system guide.
• Separate external and staff access using the customer portal versus admin dashboard guide.

Next step

Take one recently completed service request and map every record, person, decision, delay, message, part, and document from intake to callback. Contact VASUYASHII for a focused software development scope.
